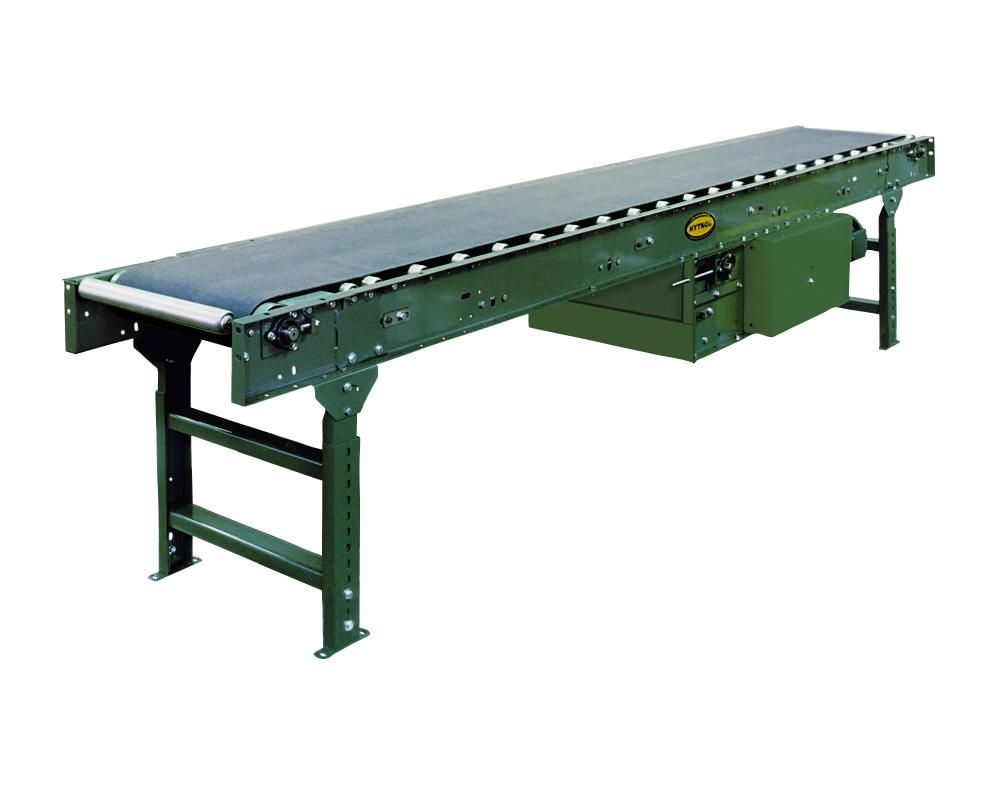

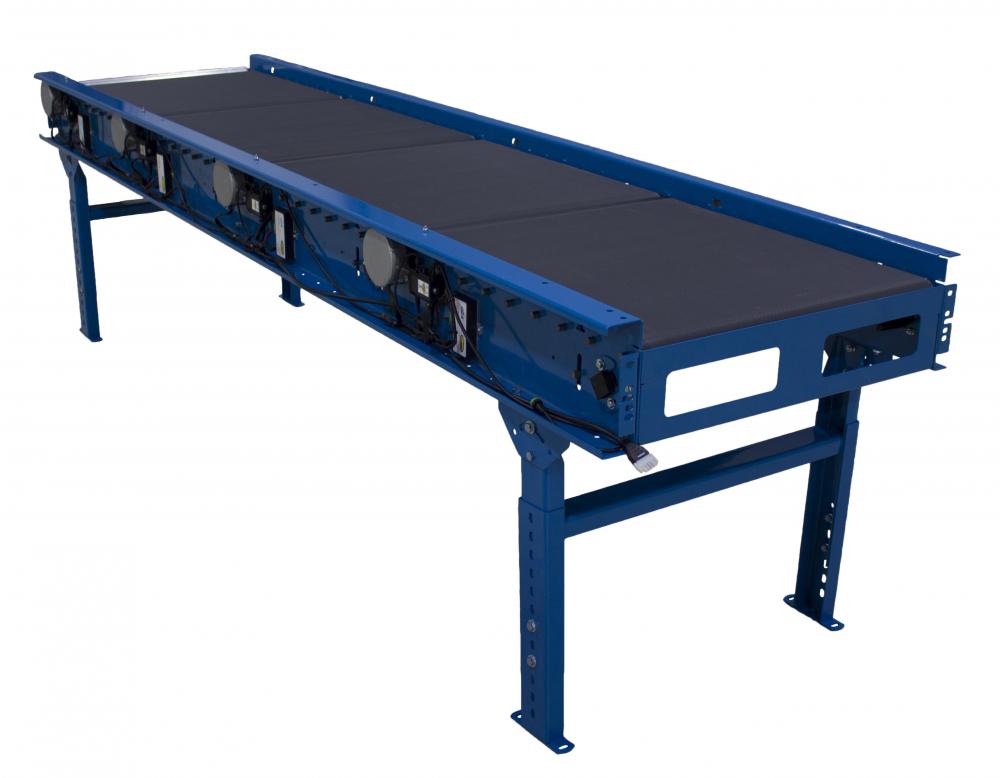

Channel Frame Roller Bed - Medium Duty

The Model RB is designed to move heavier unit loads. Roller bed design reduces belt friction and provides greater capacity. Applications include: assembly, inspection and packing operations.

Model RB Features:

• 3 Bed Widths
• Reversible
• Moves Heavier Loads
• Center Drive
• System Ends
• Pop-Out Roller
• Adjustable MS-Type Floor Supports Available

Model RB Specifications:

• Bed - 6-1/2" deep x 12 ga. formed steel frame powder painted
• Rollers - 1.9" dia. x 16 ga. galvanized rollers spaced every 6"
• Overall Frame Widths: 18", 24", 30"
• Capacity - Maximum load per linear ft. of conveyor; 225 lbs., not to exceed rated capacities
